SUSTAINABLE COEXISTENCE OF THE PARENTAL SPECIES AND HEMICLONAL INTERSPECIFIC HYBRIDS IS PROVIDED BY THE VARIETY OF ONTOGENETIC STRATEGIES
Dmytro Shabanov^{1,3}, Olena Usova^{1}, Marina Kravchenko^{1}, Olha Biriuk^{1}, Anton Leonov^{1}, Olexiy Korshunov^{1}, Quentin Mair^{2}, Olena Meleshko^{1}, Julian Newman^{2}, Marina Vladymyrova^{1}, Grygoriy Zholtkevych^{1 }
^{1} V.N. Karazin Kharkiv National University, Ukraine;
^{2} Glasgow Caledonian University, Scotland, UK
ABSTRACT
Factors determining the sustainability of Hemiclonal Population Systems in which the interspecies hybrids Pelophylax esculentus complex coexist with members of parental species were studied using a combination of empirical data and computer simulation modeling. The empirical data demonstrates the existence of different intrapopulation strategies by partitioning a sample of individuals into two groups on the basis of their body size at a given age and comparing selected groups in terms of factors such as growth rate, life span, females’ fecundity and the age at which breeding commences. Then by using simulation modeling, we study the probable importance of intrapopulation ontogenetic strategies for the stability of Pelophylax esculentus complex HPS.
Key words: Pelophylax esculentus complex, skeletochronology, strategy, undersize, oversize, simulation, hemiclonal population systems.
INTRODUCTION
The hybribogenetic complex of water frogs, Pelophylax esculentus complex (=Rana esculenta complex), consists of two parental species: the pool frog, Pelophylax lessonae (Camerano, 1882) and the marsh frog, Pelophylax ridibundus (Pallas, 1771), and their interspecies hybrids with varying ploidy levels (Plötner, 2005). It is common to refer to these hybrids by using the species name Pelophylax esculentus (Linnaeus, 1758) — the edible frog. Hemiclonal inheritance is characteristic of P. esculentus. In this case they produce gametes transmitting either P. ridibundus genome, or P. lessonae genome, or both.
P. esculentus tends to cohabit with parental species representatives in hemiclonal population systems, HPSs (Shabanov, Litvinchuk, 2010). HPS consisting only of P. esculentus are also known.
One way of designating types of HPS is associated with counting of frogs' forms, composing the system, wherein the letter L represents P. lessonae, the letter R — P. ridibundus, and the letter E — P. esculentus. The presence of polyploid P. esculentus in the HPS is represented as Ep. A particular center of diversity, named The Siverskyi Donets Center of Water Frog Diversity, has been identified in the basin of Siverskyi Donets River in the territory of Kharkiv region. It is characterized by REHPSs, REEpHPSs, as well as the complete absence of mature P. lessonae representatives (Shabanov, Litvinchuk, 2010).
Previously, the authors formed the hypothesis that diversity of individuals within one population or HPS (in the case of water frogs) can be described by the effect of intrapopulation ontogenetic strategies, IOS. Ontogenetic strategy is a hierarchy of priorities exhibited in organism development. An intrapopulation strategy is one discrete realization of a speciesspecific strategy occurring in representatives from one population or HPS. IOS is characterized by a certain syndrome (complex of related traits) reflecting a specific environmental adaptation.
The study consists of two parts. The first is the description of the diversity of water frogs as the effect of different intrapopulation strategies. For this purpose, we divide individuals into two groups on the basis of their body size at a certain age. Then selected groups are compared according to strategic characteristics of their representatives, such as growth rate, life span, females’ fecundity and the age at which they begin to participate in spawning. In the second part, by using simulation modeling, we study the probable importance, for the stability of Pelophylax esculentus complex HPS, of frogs’ diversity with respect to their IOS.
MATERIALS AND METHODS
We studied 575 water frogs, captured in Kharkivska Oblast. These frogs were of three forms: 193 were P. ridibundus, 348 were diploid P. esculentus, and 34 were triploid P. esculentus. The frog’s age was determined via the method of skeletochronology by analysing gluing lines, which are forming in bone during wintering, and are visible on the phalangeal bone cross sections (Usova, 2014). Based on the size of gluing lines visible in the bone, one can determine the dynamics of its growth, and calculate the past sizes of a given individual during its several previous winterings. The fecundity of 59 females was determined by counting eggs in their clutches.
The study of the stability of HPS of Pelophylax esculentus complex was carried out by means of a simulation model. This model simulates the changes of composition of water frogs’ HPS. Based on defined initial parameters which can be varied by the investigator, the model conducts stepbystep recalculation of the structure of the model HPS (Figure 1).
The initial parameters defined during modeling were as follows:
— Initial composition (number of individuals of different forms and ages) in the model HPS;
— Populationbiological parameters of all frog groups considered in the model HPS (which differ by genotype and age), that include its viability (probability of survival in uncompetitive environment), competitiveness (probability of survival during competitive exclusion), probability of pairing with a partner during breeding, age at first reproduction, maximum life expectancy, fecundity and resource requirements;
— Variants of all possible crossings, indicating the probability of penetrance of different genotypes in the offspring;
— Environmental capacity (quantity of available resources);
— Immigration and emigration scenarios (if necessary).

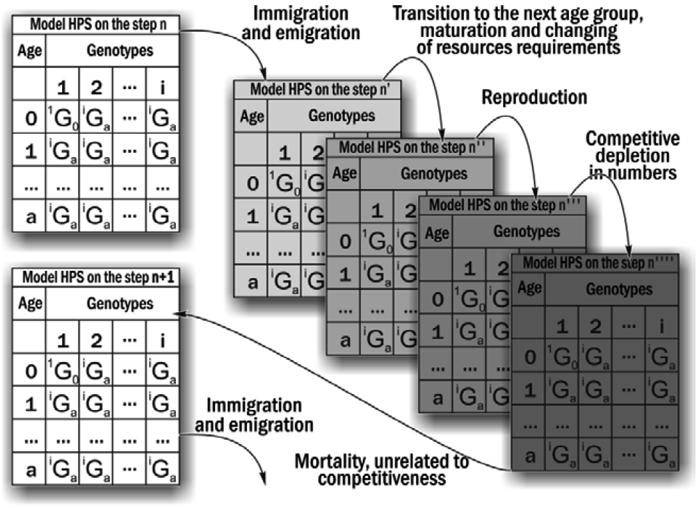

Figure 1. The calculations in each cycle of the simulation model
At each simulation timestep, the fate of each individual (its survival and reproduction) in the model HPS was determined by random process and was described by probabilities, defined in the initial model parameters. 10 simulations were run on each initial condition. Simulation outcomes were classified depending on the composition of the frog forms present in the model HPS after 500 cycles (corresponding to 500 years). Then the probability distributions of different simulation outcomes were determined depending on the initial composition of the HPS, and on the given viability parameters.
RESULTS AND DISCUSSION
Description of water frogs’ intrapopulation ontogenetic strategies (IOS)
The observed empirical distribution of individuals by age and size can be described using different models. We have chosen to model our sample using two regression lines, one of which corresponds to relatively smaller, and the other to relatively bigger individuals of the same age (Figure 2). The regression lines were fitted by the least squares method. Both selected size groups included individuals of both sexes, well as all three studied forms.
In order to compare the relative sizes of individuals of different ages, a measure independent of age is required. We used the “dimensional index” S, calculated by the formula
where L — individuals’ body length, ^{l}L— expected value of body length for an individual of such age, corresponding to a position on the regression line for relatively smaller individuals (Figure 2), ^{b}L — expected value of body length for an individual of such age, corresponding to the regression line for relatively bigger individuals.

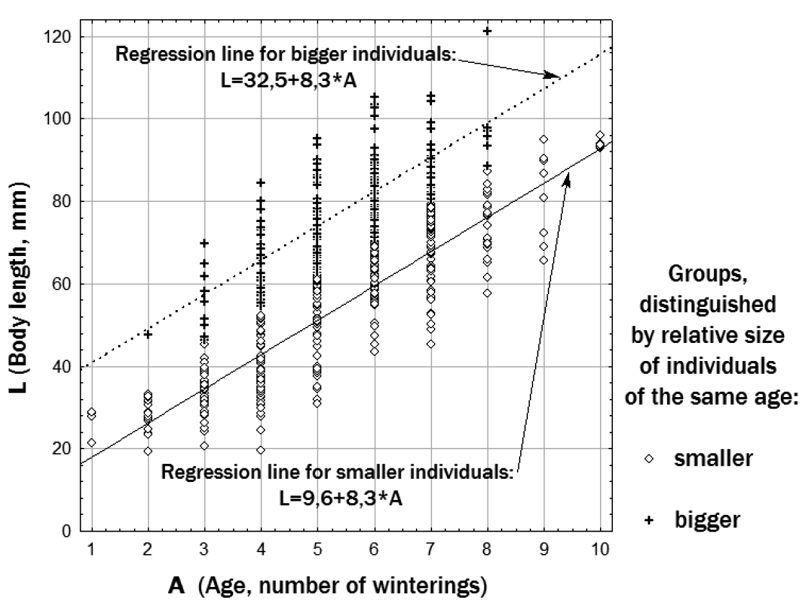

Figure 2. Approximation of the empirical agedimensional diversity of water frogs by two linear dependences
The dimensional index has the value S= 1 for frogs with a body size corresponding to a position on the regression line for relatively smaller individuals; S= +1 for those, which are on the regression line for bigger individuals; S=0 for those centrally positioned between the two regression lines.
Using the KruskalWallis test, we determined the effect of the following three factors on the dimensional index: frog form, sex and sampling site locality. The only factor whose influence on the growth rate turned out to be significant was the form of representatives of Pelophylax esculentus complex (Figure 3).

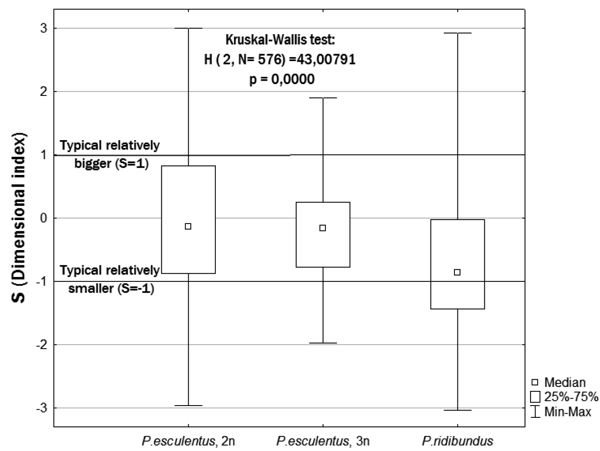

Figure 3. Comparison of the dimensional index value (S) for three studied forms of water frogs
Comparing the representatives of two selected size groups of frogs, we found significant differences in their growth rate at the 3rd and 4th years of life. As expected, the relatively bigger individuals grow much faster than the relatively smaller. The dimensional index (S) was notably associated with female fecundity: Spearman's rho was 0.34 (p = 0.009). Both the mean and the median of the clutch egg number were two to three times higher in relatively larger females than in relatively smaller females of the same age.
The oldest individuals in the studied sample belong to the smaller size group (Figure 2). Among individuals older than 6 years, the age of relatively smaller individuals is significantly greater (p=0.045 when compared by MannWhitney test) than that of relatively bigger ones.
In the study region, all frogs reach physiological puberty by the age of 34 years. However, most frogs progress significantly later to full participation in spawning (which involves presence on the spawning grounds as well as a substantial energy cost for reproduction). The age at which this happens is shown in Table 1.
Table 1. Comparison of the intrapopulation ontogenetic strategies (IOS) of undersize and oversize individuals
IOS
Characteristics
Undersize
Oversize

Females
Males
Females
Males

Size
Relatively smaller: ^{l}L = 9,7 + 8,3×A
Relatively bigger: ^{b}L = 32,5 + 8,3×A

Growth rate in the age of 34 years
Relatively low: ^{l}g^{me}_{3} = 0,170; ^{l}g^{me}_{4} =0,176
Relatively high: ^{b}g^{me}_{3} =0,450; ^{b}g^{me}_{4} =0,288

Full participation in spawning
Relatively early: since 4 years
Relatively late: since 6 years
Relatively late: since 6 years
Relatively early: since 5 years
Life span
Relatively high: up to 10 years
Relatively low: up to 8 years

Females fecundity
Relatively low: F = ‑1325 + 335×A
‒
Relatively high: F = 179 + 316×A
‒
Number of breeding seasons
Relatively large: up to 7 years
Relatively large: up to 5 years
Relatively small: up to 3 years
Relatively small: up to 4 years
Probable importance of IOS, which is realized by representatives of Pelophylax esculentus complex within one HPS
Since both oversize and undersize IOS occur in water frogs cohabiting in one HPS, we consider this variety as an adaptation to intrapopulation interactions. Simulation modeling is a useful technique for studying the importance of such adaptive strategies. We first observed the phenomenon described below in the course of experiments with a simulation model of HPS of water frogs constructed in a Microsoft Excel environment (Kravchenko et al., 2011). Subsequently it has been studied in detail using the model described above, which was developed by A.O. Leonov with additional support from Q. Mair (Shabanov et al, 2015).
We modeled REHPSs, consisting of P. ridibundus and diploid P. esculentus, whose gametes transmit female P. lessonae genome. It should be noted that we designate the genomes of P. lessonae by the letter L and the genomes of P. ridibundus by the letter R.
Male genomes are designated by superscript Y, and female genomes – by superscript X (in water frogs heterogametic sex is male; Plötner, 2005). Clonality of genome is designated by putting its symbol in the brackets. Using these symbols, we can list all the crossing types that can occur within the described HPS:
— Parental species reproduction: ♀^{X}R^{X}R × ♂^{X}R^{Y}R → ♀♀^{X}R^{X}R : ♂♂^{X}R^{Y}R;
— Crossing of parental species representatives with hybrids, wherein all offspring are hybrids: ♀^{X}R^{X}R × ♂^{Y}R(^{X}L) → ♀♀^{X}R(^{X}L); ♀^{X}R(^{X}L) × ♂^{X}R^{Y}R → ♀♀^{X}R(^{X}L) : ♂♂^{Y}R(^{X}L);
— Crossing between hybrids with producing of unviable representatives of absent in given HPS parental species: ♀^{X}R(^{X}L) × ♂^{Y}R(^{X}L) → ♀♀(^{X}L)(^{X}L) → † (Plötner, 2005; Shabanov, Litvinchuk, 2010).
Transformations of the described REHPS can lead to one of three outcomes:
(1) transformation into a population of P. ridibundus because of the disappearance of P. esculentus;
(2) preservation of REHPS due to the continued coexistence of P. ridibundus and P. esculentus;
(3) the HPS dying out as the result of P. ridibundus disappearance.
If the populationbiological parameters of P. ridibundus and P. esculentus defined during simulation are identical, the proportion of P. esculentus in the HPS rises continually due to their more efficient reproduction. If this is the case, REHPS transformations lead to the outcome (3). Such a result indicates that the viability parameters of P. ridibundus and P. esculentus are not in reality identical, for if they were identical REHPS would be relatively shortlived and disappear naturally. We know however that such systems are widespread in the river basins of Mozh River and Udy River (the right tributaries of Siverskyi Donets River).
We assumed that stable P. ridibundus and P. esculentus coexistence can be explained by lower viability of P. esculentus. According to this hypothesis, the reduced viability of hybrids should compensate the advantage of their reproduction. As shown in Figure 4, this assumption turned out to be not true: depending on the ratios of P. ridibundus to P. esculentus mortality, the simulated HPS reaches outcome (1) or (3).

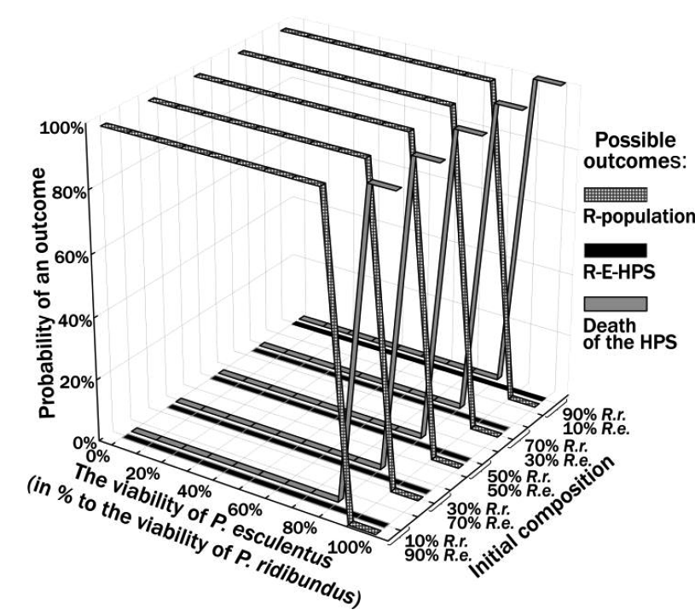

Figure 4. Results of simulation of REHPS transformation with assumption that P. ridibundus and P. esculentus differ only by probability of their death
Another result is observed when P. ridibundus and P. esculentus exemplify different IOS (Figure 5). In this case, the system state enters a zone of correlative viability of the two forms, where their sustainable coexistence is possible.

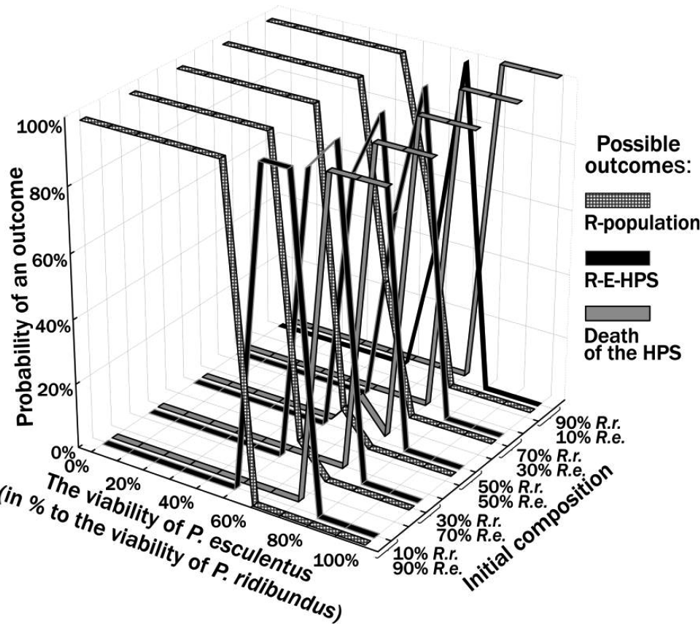

Figure 5. Results of simulation of REHPS transformation with assumption, that P. ridibundus and P. esculentus differ by their IOS
We assume that the phenomenon we have observed in our simulations is a particular case of more general mechanism. In further studies, we plan to test the hypothesis that the difference in ontogenetic strategies can contribute to the coexistence of competing species.
REFERENCES
Kravchenko M.O., Shabanov D.A., Vladimirova M.V., Zholtkevych G.M. 2011. Issledovanie ustojchivosti gemiklonal'nyh populjacionnyh sistem gibridogennogo kompleksa zelenyh ljagushek pri pomoshhi imitacionnogo modelirovanija. [Investigation of the stability of hemiclonal population systems of water frogs hybridogenetic complex by the means of simulation modeling]. Vіsnik Dnіpropetrovs'kogo unіversitetu. Bіologіja. Ekologіja. [The Journal of Dnipropetrovsk National University. Biology. Ecology]. Dnipropetrovsk. 1 (19): 51–64. (In Russian with summary in English).
Plötner J. 2005. Die westpaläarktichen Wasserfrösche. Bielefeld: 161 s.
Shabanov D.A., Korshunov A.V., Kravchenko M.A., Meleshko E.V. , Shabanova A.V., Usova E.E. 2014. Vnutripopuljacionnye ontogeneticheskie strategii skorospelosti i tugoroslosti: opredelenie na primere beshvostyh amfibij. [Intrapopulation ontogenetic strategies of precocity and stuntedity: determination in the case of anurans]. Vіsnik Harkіvs'kogo nacіonal'nogo unіversitetu іmenі V. N. Karazіna. Serіja: bіologіja. [The Journal of V.N. Karazin Kharkiv National University. Series: Biology]. Kharkiv. 22 (1126): 115124. (In Russian with summary in English).
Shabanov D.A., Litvinchuk S.N. 2010. Zelenye ljagushki: zhizn' bez pravil ili osobyj sposob evoljucii? [The water frogs: life without rules or particular way of evolution?]. Priroda. [Nature]. SaintPetersburg. 3: 29–36. (In Russian).
Shabanov D., Usova O., Kravchenko M., Leonov A., Korshunov O., Mair Q., Meleshko O., Newman J., Vladymyrova M., Zholtkevych G. 2015. Sustainable coexistence of the parental species and hemiclonal interspecific hybrids is provided by the variety of ontogenetic strategies: simulation HPS Pelophylax esculentus complex preliminary results. Book of abstracts of the 3rd International workshop–conference: Research and conservation of European herpetofauna and its environment: Bombina bombina, Emys orbicularis, and Coronella austriaca. Daugavpils: P. 37.
Usova E.E. 2014. Vozrast i skorost' rosta zelenyh ljagushek (Pelophylax esculentus complex) Nizhnego Dobrickogo pruda (Zmievskoj rajon Har'kovskoj oblasti). [Age and growth rate of water frogs (Pelophylax esculentus complex) from Lower Dobritskiy Pond (Zmiiv District, Kharkiv Region)]. Vіsnik Harkіvs'kogo nacіonal'nogo unіversitetu іmenі V. N. Karazіna. Serіja: bіologіja. [The Journal of V.N. Karazin Kharkiv National University. Series: Biology]. Kharkiv. 20 (1100): 204–212. (In Russian with summary in English).
